EMS Accessories
Ethernet Switches
Technology
- IEEE 802.3 / 802.3u / 802.3ab (Ethernet, Fast Ethernet, Gigabit Ethernet)
- IEEE 802.1Q (VLAN tagging), 802.1p (QoS), 802.3af/at (PoE/PoE+)
- Store-and-forward switching, MAC address learning
- Redundancy protocols (STP, RSTP, MSTP for managed switches)
Standards & Compliance
- IEEE 802 family
- CE, FCC, RoHS certified
- Industrial models: IEC 61850-3, IEEE 1613 (for substation environments)
- UL/EN60950-1 (electrical safety)

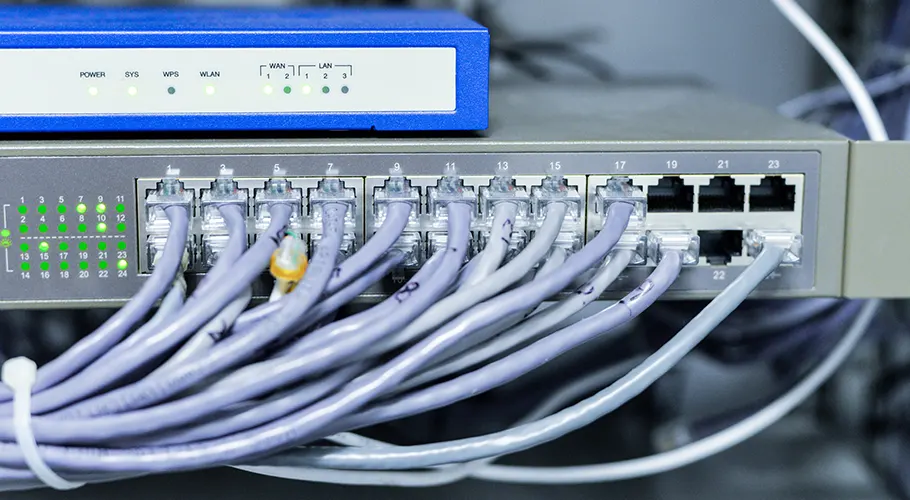

Technical Features
- Port count from 5 to 48, copper & fiber options
- DIN-rail / wall / rack mounting
- Redundant power inputs for industrial models
- Wide operating temperature range (–40°C to +75°C)
- SNMP v1/v2c/v3, Web GUI, CLI for management (on managed switches)
Applications
- Establish EMS/SCADA communication backbone across plants
- Aggregate data from smart meters, PLCs, and controllers
- Create VLANs to isolate subsystems (e.g., lighting vs HVAC)
- Power edge devices like IP cameras and sensors using PoE
- Enable high-speed, reliable communication in substations and data rooms
- Redundant ring topologies in industrial environments
Media Converters / Protocol Converters
Technology
- Serial UART, RS232/RS485 transceivers
- Ethernet PHY & MAC for bridging serial to IP
- Modbus RTU ↔ Modbus TCP, BACnet MS/TP ↔ BACnet/IP

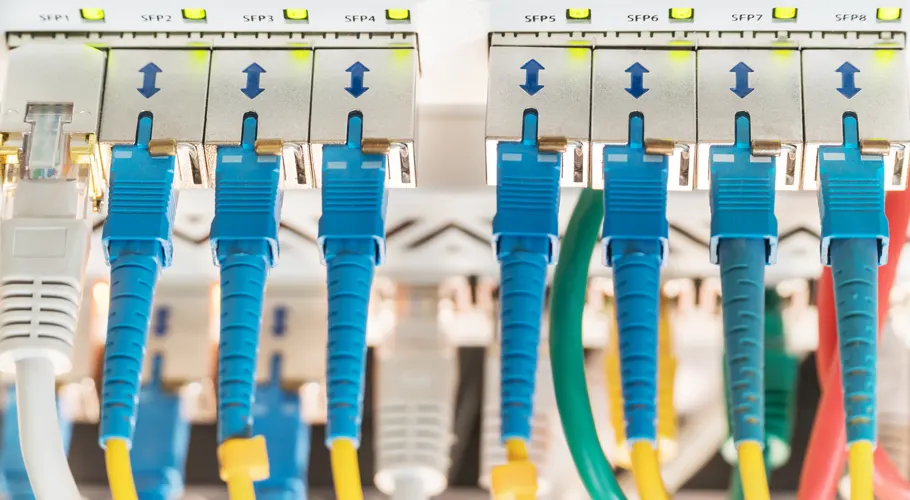

- Optical transceivers (SFP or fixed fiber) for Ethernet–Fiber converters
- Wi-Fi SoC or Zigbee/LoRa modules for wireless bridges
Standards & Compliance
- Modbus RTU/TCP, BACnet/IP
- IEEE 802.3 (Ethernet)
- CE, FCC, UL, RoHS
- Optical: IEEE 802.3z for fiber media
Technical Features
- Baud rates: 300 bps to 115.2 kbps for serial
- Auto MDI/MDIX on Ethernet ports
- Isolation: 2kV-4kV between ports
- DIN-rail mount, IP30/IP65 housing (for industrial units)
- LED diagnostics, watchdog timers, surge protection
Applications
- Extend network communication over fiber to remote substations
- Integrate legacy serial devices into IP-based EMS systems
- Convert Modbus RTU energy meters to TCP/IP for SCADA access
- Bridge isolated control panels wirelessly (where cabling is not feasible)
- Integrate Modbus-based sensors with BACnet/IP for BMS systems
- Enable multi-protocol interoperability in mixed-protocol environments
Status Converters
Technology
- Opto-isolated digital input sensing
- Relay or MOSFET output drivers
- Modbus RTU/TCP/IP communication
- Dry contact to logic level converters
- Alarm signal buffering and latching logic
Standards & Compliance
- Modbus RTU/TCP
- EN 61000-6-2 / EN 61000-6-4 (EMC for industrial)
- CE, FCC, RoHS
- UL 508 (industrial control)
Technical Features
- Input types: NO/NC, dry contact, 5–30V logic
- Output: relay (SPST/SPDT) or transistor
- Channel counts from 4 to 32 DI/DO
- Modbus mapping of each input/output
- Panel, wall, or DIN-rail mountable
JavaScript Fundamentals
- Monitor breaker status, DG ON/OFF, panel fan operation
- Map dry contact alerts from fire panels, access systems to EMS
- Signal alarms to SCADA for door open, overload, high temp, etc
- Convert DI/DO signals from field devices into Modbus registers
- Aggregate contact inputs across distributed control panels
- Alert dashboards based on digital status changes from mechanical relays
Data Loggers
Technology
- Embedded microcontrollers with real-time clock (RTC)
- RS485/Ethernet interfaces
- SD card, flash, or internal memory for data storage
- MQTT/HTTP/SFTP protocols for cloud sync
- GSM/4G/NB-IoT modems for remote access
Standards & Compliance
- Modbus RTU/TCP
- CE, FCC, RoHS
- IEC 61010-1 safety
- EMC: EN 61326-1
Technical Features
- Port count from 5 to 4Memory size: 8MB to 32GB (expandable via SD)8, copper & fiber options
- Logging intervals: 1s to 1 hour configurable Battery backup for RTC & data retention
- Email/SMS alerts
- USB/Ethernet configuration interfaces
Applications
- Log energy, power quality, and environmental data for compliance
- Provide buffer storage during network downtime
- Sync data to cloud servers for analytics, reports, and alerts
- Support remote energy audits via GSM/4G access
- Capture trends from RS485 or Ethernet-based field sensors
- Deploy portable units for short-term data acquisition in temporary sites
PLCs (Programmable Logic Controllers)
Technology
- ARM/Cortex or proprietary CPUs
- Ladder logic, FBD, ST programming (IEC 61131-3)
- Digital/analog I/O expansion modules
- Modbus RTU/TCP, BACnet/IP, OPC-UA, MQTT
- Real-time OS or bare-metal firmware
Standards & Compliance
- IEC 61131-2 (PLC hardware)
- IEC 61131-3 (programming languages)
- CE, UL, RoHS
- Safety PLCs: SIL2/SIL3, IEC 61508 compliant

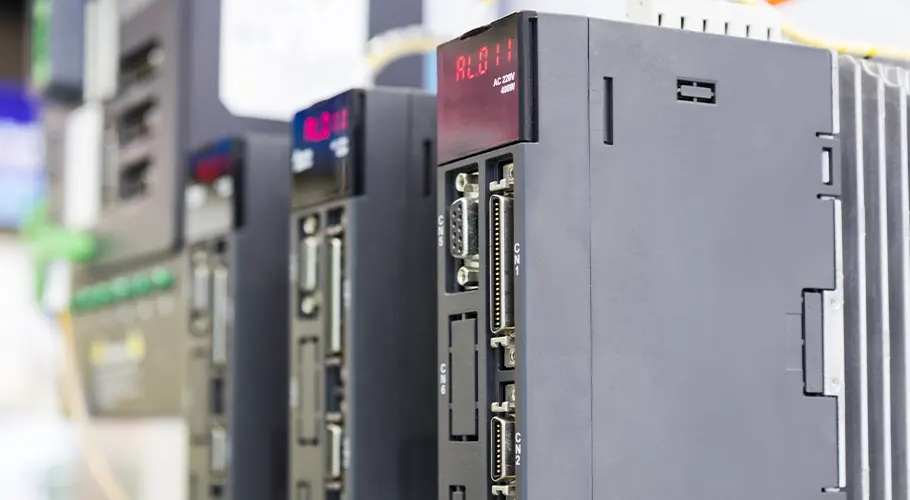

Technical Features
- I/O: 8–256 DI/DO, 4–64 AI/AO
- Program memory: 64 KB to 2 MB
- Watchdog timer, program checksum
- Hot-swap modules (in modular PLCs)
- Communication: RS485, Ethernet, CAN, Profibus
Applications
- Automate control of HVAC, lighting, pumps, and DGs
- Implement logic for energy-saving operations (e.g., peak load shedding)
- Perform capacitor bank switching based on real-time power factor
- Enable local automation in substations with remote IO support
- Integrate seamlessly with SCADA via Modbus or BACnet
- Perform edge processing and pre-filter data before cloud upload
Temperature & Humidity Gateways
Technology
- Digital temperature/humidity sensors (SHT, DHT, Sensirion, Bosch)
- Signal conditioning for analog inputs
- RS485/Ethernet/Wi-Fi/GSM interfaces
- MQTT, HTTP POST, Modbus, BACnet/IP protocols
- Embedded OS or real-time firmware with local processing
Standards & Compliance
- CE, FCC, RoHS
- ISO/IEC 17025 (sensor calibration optional)
- MQTT 3.1.1 / 5.0 compliant
- EN 12830 (for cold chain data loggers)
Technical Features
- Accuracy: ±0.2–0.5°C (temp), ±2–3% RH (humidity)
- Logging & buffering: onboard memory 2MB–16MB
- LCD screen (on some models)
- Battery backup for GSM/NB-IoT models
- Operating range: –40°C to +85°C, up to 95% RH non-condensing
- Configurable alerts via email/SMS/cloud
JavaScript Fundamentals
- Monitor HVAC conditions in commercial buildings and datacenters
- Alert for overheating in electrical panels and battery rooms
- Maintain cold storage compliance for pharmaceuticals and food
- Enable remote site monitoring with cellular connectivity
- Track humidity to prevent corrosion in industrial cabinets
- Correlate ambient conditions with energy usage patterns in EMS analytics
