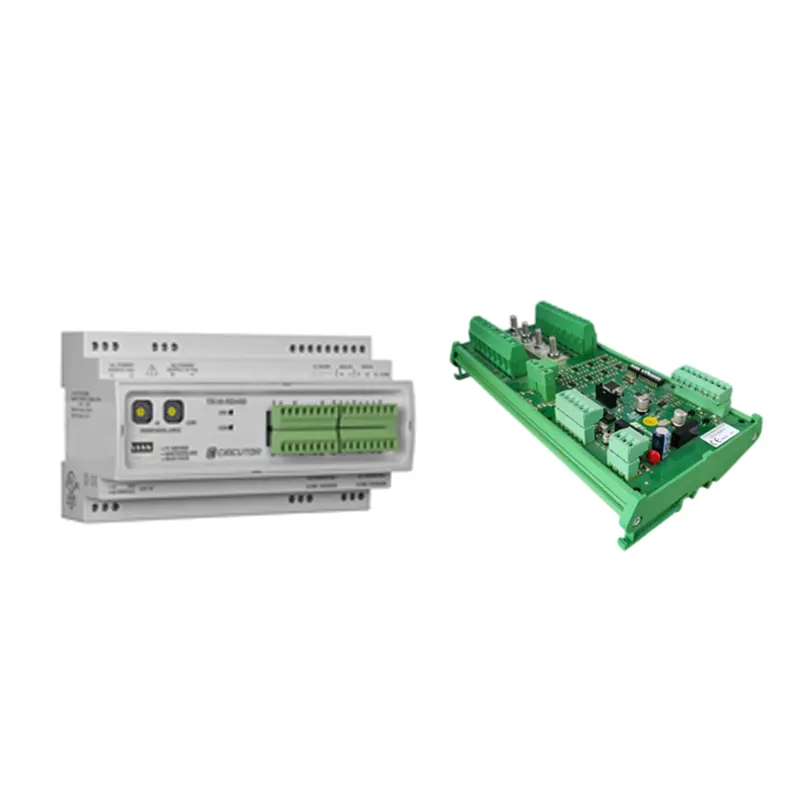

String Monitoring Unit
String Monitoring unit
Technology : Monitor the performance and health of individual solar strings (groups of connected solar panels), ensuring efficient energy generation and early detection of faults.
Standards:
- IEC 61724 – PV system performance monitoring
- IEC 61010 – Safety standards
- Modbus RTU Protocol compliance
- IS standards for SPDs and protection devices
- Input Voltage Range Up to 1500V DC
- String Current Range 0 – 30A per string
- Number of Strings 8 / 12 / 16 / 24 configurable
- Voltage Measurement Bus voltage measurement
- Communication RS485 (Modbus RTU)
- Accuracy ±1%
- Protection Fuses, SPDs, disconnectors
- Enclosure Rating IP65 / IP66
- Mounting Wall / Frame mounted
- Operating Temp. -20°C to +70°C
OPTIONAL ADDED FEATURES
Communication Protocol
Safety & Protection
FIRMWARE FUTURE FEATURES
Additional Parameters
Regulatory Compliance
APPLICATIONS
Utility-scale PV power plants
Commercial rooftop solar plants
Solar farms requiring remote monitoring
Plants integrated with EMS / SCADA systems
